Spring loaded axial check valve
Type 402

PN10 to PN100 - 150Lbs to 600Lbs according to DN

DN15 to DN100 - 1/2" to 4"

Characteristics
Options
Achievements
Options
  • Connection :
  • Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW,  or other special connections under request)
  • Specific configurations :
  • 3 ways
  • Heating jacket
  • Draining or cleaning nozzles
  • Certifications :
  • ATEX certification
  • Fire-safe design
  • FDA certificate for body seal and stuffing box packing



Notes:

Some options are not compatible

Special valve can be designed upon request

Dimension

DN15 to DN100

Pressure class

PN10 to PN100 - 150Lbs to 600Lbs according to DN

Connection

Wafer type

Body shape

Straight

Valve type

Spring loaded axial check valve

Material in contact with the fluid

Steel, stainless steel, duplex and super duplex, inconel, incoloy®, hastelloy®, titanium, zirconium, uranus®, nickel, tantalium, monel

Disc seating surface

Metal / metal, PTFE, EPDM, viton, viton FEP, Kalrez®, stellite, other…

Actuator

Spring loaded disc

Spring loaded axial check valve DN15, 40 and 80 PN16 in stainless steel 316Ti 3N class
Disc check valve DN80 PN16 in stainless steel 316L
Disc check valve DN15 PN20 in Uranus ® B6

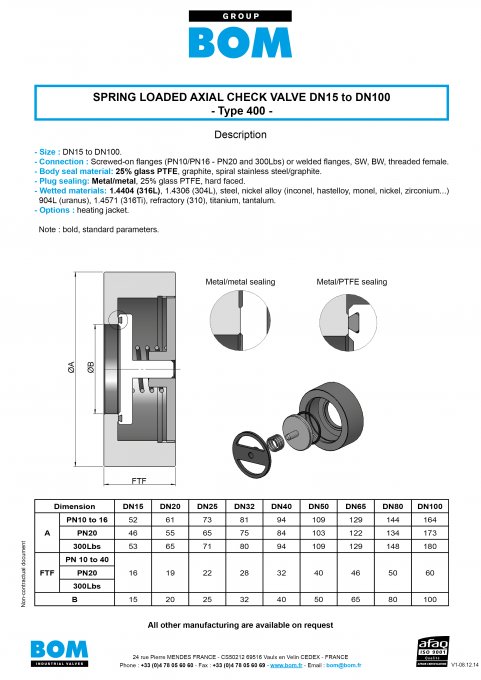

Download the specification sheet
https://bom.fr/sites/default/files/spring_loaded_axial_check_valve_1.pdf
