Filtro en línea
Type 500

PN10 to PN100 - 150Lbs to 600Lbs

DN15 to DN300 - 1/2" to 12"

Características
Opciones
Realizaciones
Options
  • Connection :
  • Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Specific configurations :
  • Draining or cleaning nozzles
  • Heating jacket
  • Low point drain nozzle
  • Manometer
  • Magnetic bars
  • Porous metal filter cartridges
  • Quick cover opening
  • Certifications :
  • ATEX certification
  • FDA certificate for body seal and stuffing box packing



Notes:

Some options are not compatible

Special valve can be designed upon request

Dimension

DN15 to DN300

Pressure class

PN10 to PN100 - 150Lbs to 600Lbs

Connection

Welded, screwed-on or floating flange

Body shape

Straight In-line Inlet/Outlet

Body seal material

25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM…

Material in contact with the fluid

Steel, stainless steel, inconel, incoloy®, hastelloy®, uranus®, nickel, monel, other...

Bonnet type

Bolted, SMS connection, tilting bolts, clamp, other...

Filtration

From 20 µm to 10mm and more

In-line inlet/outlet Strainer DN50 PN16 in stainless steel 316L, with magnetic bars, filtration 250µm
In-line inlet/outlet Strainer DN100 PN16 in stainless steel 316l, wing bolts and hinge opening, filtration 800µm
In-line inlet/outlet Strainer DN80 PN16 in stainless steel 316L, tilting bolts opening, low point drain nozzle and vent nozzle, filtration 3mm
In-line inlet/outlet Strainer DN100 PN16 in stainless steel 304L, quick cover opening with clamp connection extended on the bonnet, vent nozzle, filtration 150µm

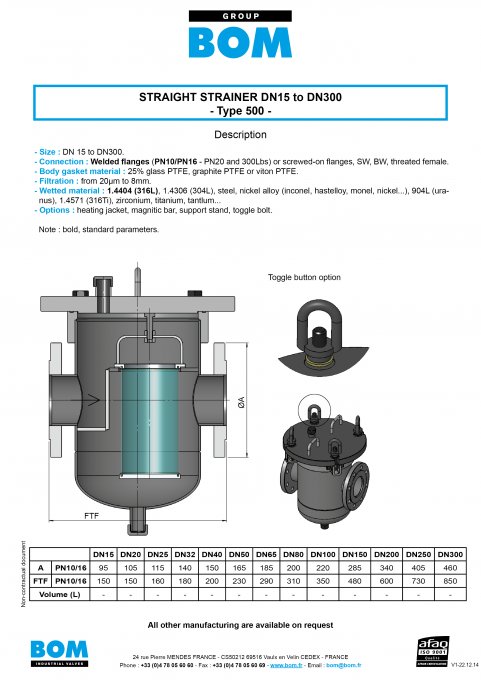

Download the specification sheet
