Spray rinse ball valve
PN10 to PN50, 150Lbs to 300Lbs according to DN
DN15 to DN50 - 1/2" to 2"
Characteristics
Achievements
Options
- Connection :
- Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
- Operation :
- Stainless steel pneumatic actuator
- Electric actuator
- Manual override
- Manual operator with locking mechanism
- Extended manual operator with/without cardans
- Manual operator mounted on ISO base for later adaptation of actuator
- Limit switches (mechanical, inductive or other)
- Electro-distributor
- Junction box
- Certifications :
- ATEX certification
- FDA certificate for body seal and stuffing box packing
Notes :
Some options are not compatible
Special valve can be designed upon request
Dimension
DN15 to DN50
Pressure class
PN10 to PN50, 150Lbs to 300Lbs according to DN
Connection
Welded, screwed-on or floating flange
Material in contact with the fluid
Steel, stainless steel, duplex and super duplex, inconel, incoloy®, hastelloy®, titanium, uranus®, nickel, monel
Stem sealing system
Sealed O’rings stuffing box, with pure or filled PTFE rafters, stuffing box with graphite packing, reinforced stuffing box (O’rings + packing), double safety stuffing box
Body seal material
25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM...
Seats material
Graphite filled PTFE, glass filled PTFE, stainless steel PTFE, delrin, nylon, polypropylene, peek, TFM1600, TF4215...
Actuator
Manual, pneumatic (single or double-acting), electrical

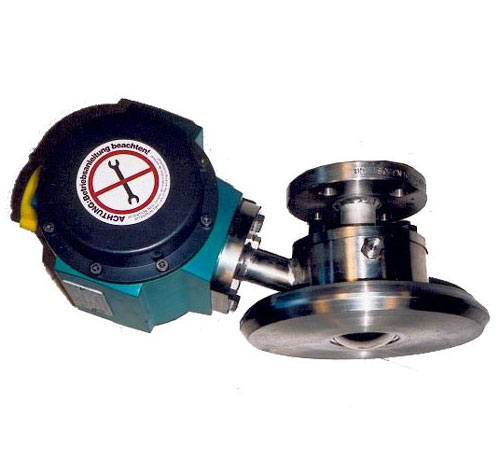

Spray rinse ball valve DN40 PN16 in stainless steel 316L, with flushing ball, angle axis, double-acting pneumatic actuator and limit switch box

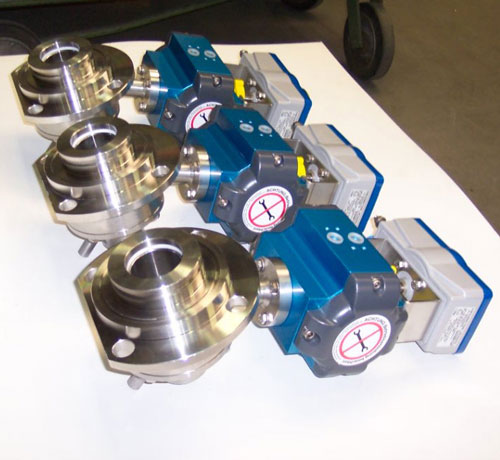

Spray rinse ball valve DN25 PN16 in stainless steel 316L, tank welded, flushing ball, angle axis, double-acting pneumatic actuator
Spray valve DN50 PN16 in stainless steel 316L, flushing ball, angle axis, cleaning nozzles, with double-acting pneumatic actuator and limit switch box
img-left
Operational principle:
Tank cleaning and spraying
Advantages:
- Tank flushing system to avoid any disturbance (no introduction inside the vessel)
- In closed position, spray holes are inside the valve to ensure that there will be no clogging and a smooth next tank cleaning
- Fully automated system without intervening on the valve
- Whether tank welded or PAD removable
