Multiways polymer valve

PN10 to PN420 - 150Lbs to 2500Lbs

DN25 to DN300 - 1" to 12"

  • Connection :
  • Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Operation :
  • Multiturns pneumatic actuator
  • Stainless steel pneumatic actuator
  • Electric actuator
  • Manual override
  • Chain handwheel
  • Manual operator with locking mechanism
  • Extended manual operator with/without cardans
  • Manual operated lever actuator
  • Manual angular gearboxes actuator
  • Manual operator mounted on ISO base for later adaptation of actuator
  • Limit switches (mechanical, inductive or other)
  • Electro-distributor
  • Junction box
  • Specific configurations :
  • Pneumatic compact version
  • Inside and/or outside polishing
  • Heating jacket
  • Leak detector at stuffing box
  • Certifications :
  • ATEX certification
  • Fire-safe design


Notes :

Some options are not compatible

Special valve can be designed upon request


DN25 to DN300

Pressure class

PN10 to PN420 - 150Lbs to 2500Lbs


Welded flange

Body shape

According to specifications

Material in contact with the fluid

Steel, stainless steel, other...

Stem sealing system

Stuffing box with graphite packing, double stuffing box (O’rings + packing)

Disc seating surface

Metal / metal, Stellite, other...


Manual, pneumatic (single or double-acting), electrical or hydraulic

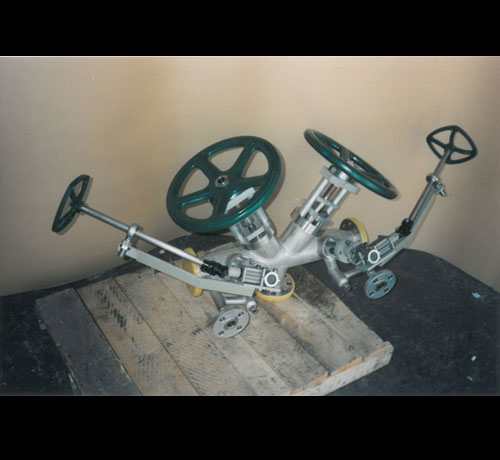

3 ways polymer valve DN40 PN420 in stainless steel 316L, with cleaning nozzles, heating jacket and manual handwheel actuator

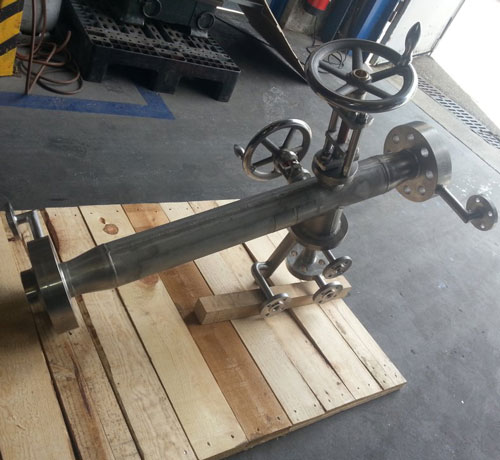

5 ways polymer valve DN50 PN100 in stainless steel 316L, with double injection nozzles, heating jacket and manual handwheel angular gear actuator for nozzles

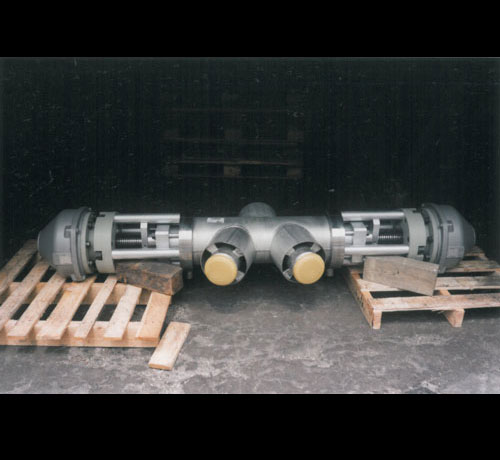

3 ways polymer valve DN80 PN50 in stainless steel 316L, with heating jacket and manual gear actuator
Download the 3D model
