2 ways taper plug valve
Type 410

PN10 to PN250 - 150Lbs to 1500Lbs

DN10 to DN150 - 3/8" to 6"

Characteristics
Options
Achievements
Options
  • Connection :
  • All kind of connection (screwed-on, welded or floating flange threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Operation :
  • Stainless steel pneumatic actuator
  • Electric actuator
  • Manual override
  • Manual operator with locking mechanism
  • Extended manual operator with/without cardans
  • Manual operator mounted on ISO base for later adaptation of actuator
  • Limit switches (mechanical, inductive or other)
  • Electro-distributor
  • Junction box
  • Specific configurations :
  • Heating jacket
  • Double stuffing box
  • Certifications :
  • ATEX certification
  • FDA certificate for body seal and stuffing box packing



Note:

Some options are not compatible

Special valve can be designed upon request

Dimension

DN10 to DN150

Pressure class

PN10 to PN250 - 150Lbs to 1500Lbs according to DN

Connection

Welded, screwed-on or floating flange



Material in contact with the fluid

Steel, stainless steel, duplex and super duplex, inconel, incoloy®, hastelloy®, titanium, zirconium, uranus®, nickel, monel



Stem sealing system

Sealed O’rings stuffing box, with pure or filled PTFE rafters, stuffing box with graphite packing, reinforced stuffing box (O’rings + packing), double safety stuffing box

Body seal material

25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM...



Sleeve material

Pure PTFE, 25% PTFE glass, other...

Actuator

 Manual, pneumatic (single or double-acting), electrical

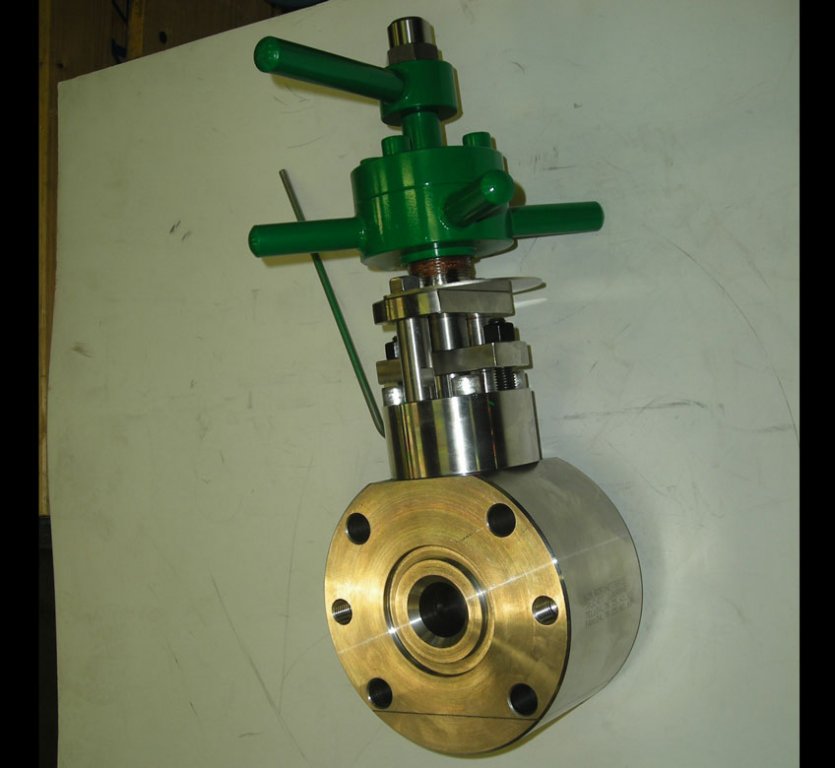

Taper plug valve DN25 PN16 in Inconel 625, with leak detector at stuffing box
