Angle globe valve
Type 710

PN10 to PN250, 150Lbs to 1500Lbs according to DN

DN15 to DN300 - 1/2" to 12"

Characteristics
Options
Achievements
Options
  • Connection :
  • Any type of connection (screwed-on, welded or floating flange, threaded , SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Operation :
  • Multiturns pneumatic actuator
  • Stainless steel pneumatic actuator
  • Intelligent positioner
  • Electro-pneumatic, pneumatic positioner
  • Electro-distributor
  • Electric actuator
  • Manual override
  • Chain handwheel
  • Manual gear actuator
  • Manual angular gear actuator
  • Manual operator with locking mechanism
  • Extended manual operator with/without cardans
  • Manual operator mounted on ISO base for later adaptation of actuator
  • Limit switches (mechanical, inductive or other)
  • Junction box
  • Specific configurations :
  • Bellows seal on stem
  • Inside and/or outside polishing
  • Removable seats
  • Heating jacket
  • Leak detector at stuffing box
  • Nitrogen flushing unit in the junction box
  • Draining or cleaning nozzle
  • Certifications :
  • ATEX certification
  • Fire-safe design
  • FDA certificate for body seal and stuffing box packing



Notes:

Some options are not compatible

Special valve can be designed upon request

Dimension

DN15 to DN300

Pressure class

PN10 to PN250, 150Lbs to 1500Lbs according to DN

Connection

Welded, screwed-on or floating flange

Body shape

Angle

Stem sealing system

Sealed O’rings stuffing box, with sealing bellows, with pure or filled PTFE rafters, stuffing box with graphite packing, reinforced stuffing box (O’rings + packing)

Body seal material

25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM...

Disc seating surface

Metal / metal, PTFE, EPDM, stellite, other…

Flow features

Linear, TOR, exponential, parabolic, other...

Actuator

Manual, pneumatic (single or double-acting), electrical or hydraulic

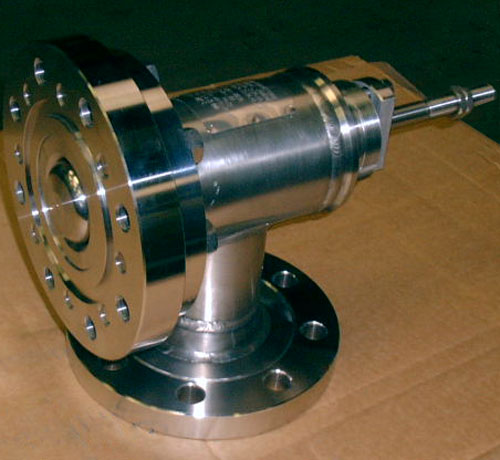

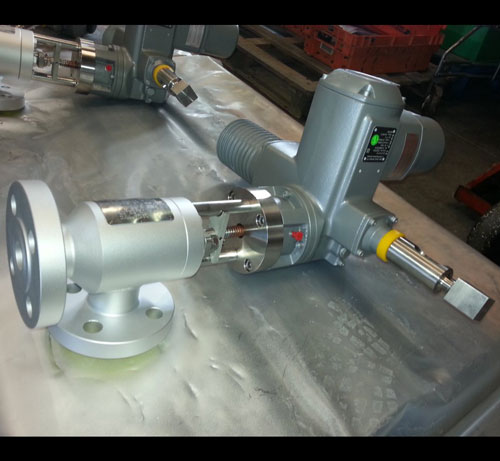

Batch of angle globe valves DN25 PN16 in steel with electrical actuator
Angle globe valve DN65 PN16 in Hastelloy ® B3 with adjustable motorization

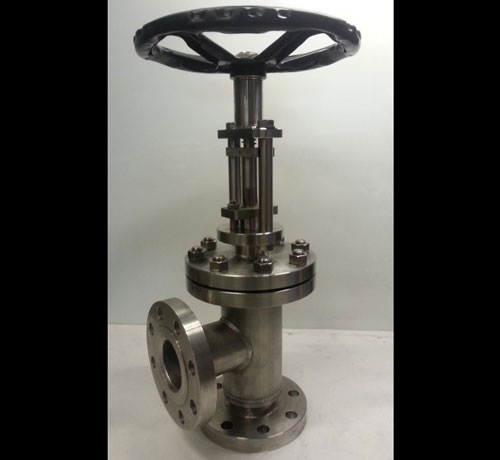

Angle globe valve DN80 PN16 in stainless steel 316L with manual handwheel

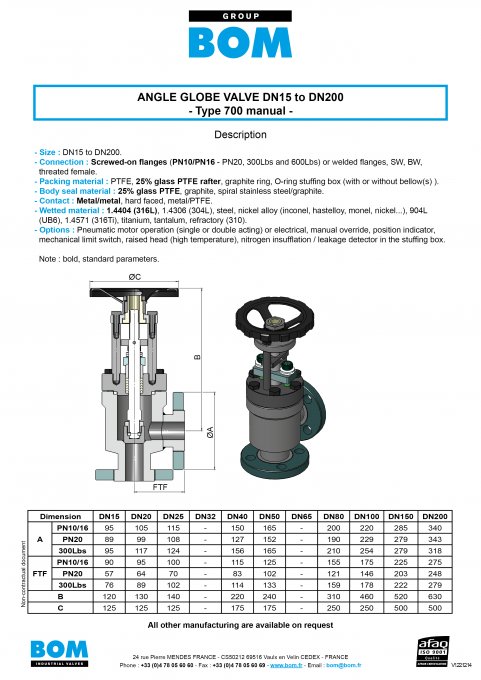

Download the specification sheet
