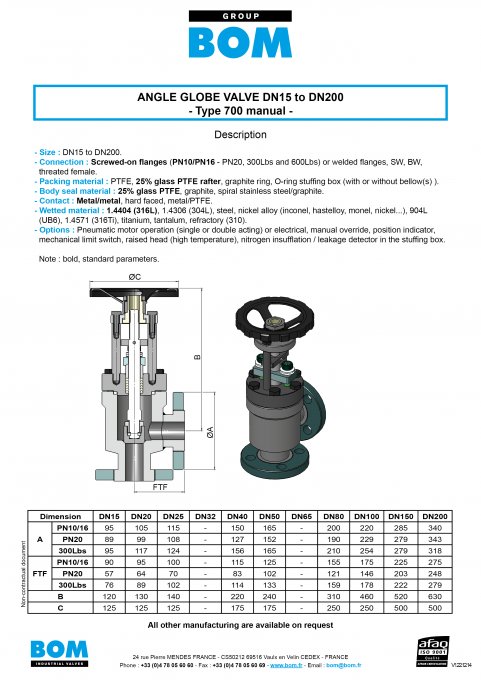

Angle globe valve
Type 710
PN10 to PN250, 150Lbs to 1500Lbs according to DN
DN15 to DN300 - 1/2" to 12"
Characteristics
Achievements
Dimension
DN15 to DN300
Pressure class
PN10 to PN250, 150Lbs to 1500Lbs according to DN
Connection
Welded, screwed-on or floating flange
Body shape
Angle
Stem sealing system
Sealed O’rings stuffing box, with sealing bellows, with pure or filled PTFE rafters, stuffing box with graphite packing, reinforced stuffing box (O’rings + packing)
Body seal material
25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM...
Disc seating surface
Metal / metal, PTFE, EPDM, stellite, other…
Flow features
Linear, TOR, exponential, parabolic, other...
Actuator
Manual, pneumatic (single or double-acting), electrical or hydraulic
Options
- Connection :
- Any type of connection (screwed-on, welded or floating flange, threaded , SW, BW, double male or female connection, single male or female connection or other special connections under request)
- Operation :
- Multiturns pneumatic actuator
- Stainless steel pneumatic actuator
- Intelligent positioner
- Electro-pneumatic, pneumatic positioner
- Electro-distributor
- Electric actuator
- Manual override
- Chain handwheel
- Manual gear actuator
- Manual angular gear actuator
- Manual operator with locking mechanism
- Extended manual operator with/without cardans
- Manual operator mounted on ISO base for later adaptation of actuator
- Limit switches (mechanical, inductive or other)
- Junction box
- Specific configurations :
- Bellows seal on stem
- Inside and/or outside polishing
- Removable seats
- Heating jacket
- Leak detector at stuffing box
- Nitrogen flushing unit in the junction box
- Draining or cleaning nozzle
- Certifications :
- ATEX certification
- Fire-safe design
- FDA certificate for body seal and stuffing box packing
Notes:
Some options are not compatible
Special valve can be designed upon request
Batch of angle globe valves DN25 PN16 in steel with electrical actuator
Angle globe valve DN65 PN16 in Hastelloy ® B3 with adjustable motorization
Angle globe valve DN80 PN16 in stainless steel 316L with manual handwheel
