2 ways ball valve
Type 100 to 300 and 1200 to 2300

PN 10 to PN 250 - 150 Lbs to 1500 Lbs

DN 10 to DN 300 - 3/8" to 1/2"

Characteristics
Options
Achievements
Options
  • Connection :
  • All kind of connection (screwed-on, welded, floating or threaded flange, SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Operation :
  • Stainless steel pneumatic actuator
  • Electric actuator
  • Manual override
  • Manual operator with locking mechanism
  • Extended manual operator with/without cardans
  • Manual operator mounted on ISO base for later adaptation of actuator
  • Limit switches (mechanical, inductive or other)
  • Electro-distributor
  • Junction box
  • Specific configurations :
  • Heating jacket
  • Leak detector at stuffing box
  • Draining or vent nozzle
  • Double safety stuffing box
  • Certifications :
  • ATEX certification
  • Fire-safe design
  • FDA certificate for body seal and stuffing box packing



  • Notes:

Some options are not compatible

Special valve can be designed upon request

Dimension

DN 10 to DN 300

Pressure class

PN 10 to PN 250 - 150 Lbs to 1500 Lbs according to DN

Connection

Welded, screwed-on or floating flange

Body type

One way, two ways or three ways

Valve type

Floating or Trunnion ball, fixed or floating seats

Stem sealing system

Sealed O'rings stuffing box, with pure or filled PTFE rafters, graphite stuffing box, strengthened stuffing box (seal plus packing), security extra stuffing box

Body seal material

25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM...

Seats material

Graphite filled PTFE, glass filled PTFE, stainless steel PTFE, nylon, polypropylene, peek, TFM1600, TF4215...

Material in contact with the fluid

Steel, stainless steel, duplex and super duplex, inconel, incoloy®, hastelloy®, titanium, zirconium, uranus®, nickel, monel

Actuator

Manual, pneumatic (single or double-acting), electrical

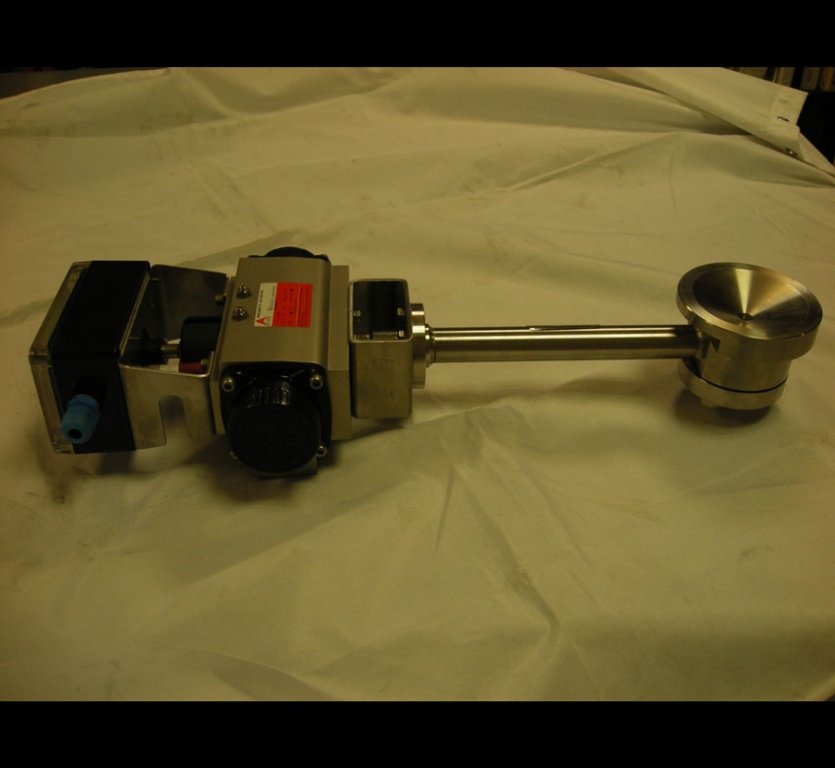

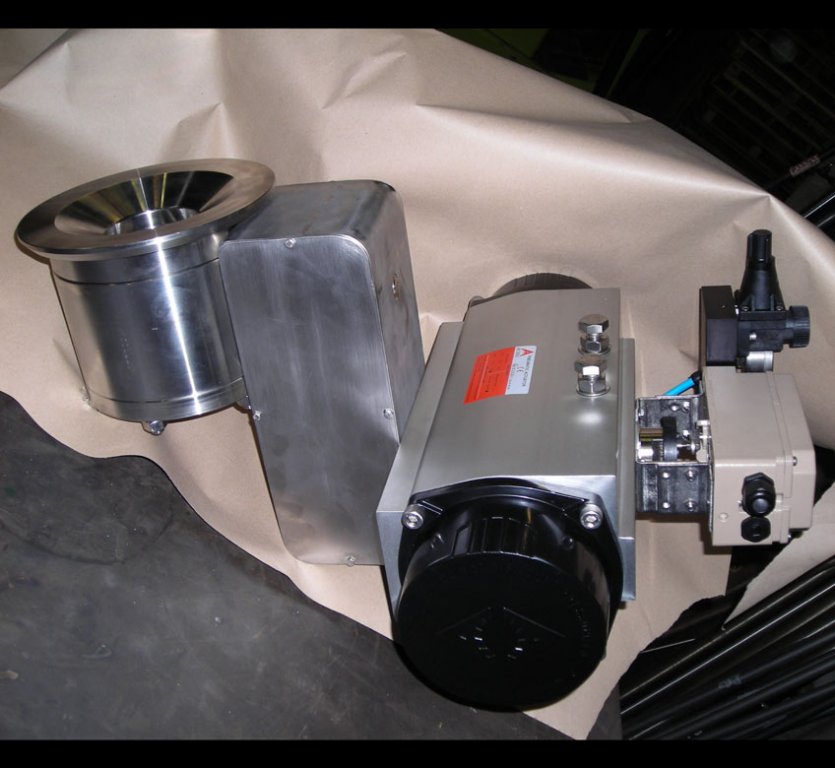

Tank bottom ball valve DN 50 PN 20 in stainless steel 316Ti, pneumatic actuator with remote control and limit switch box

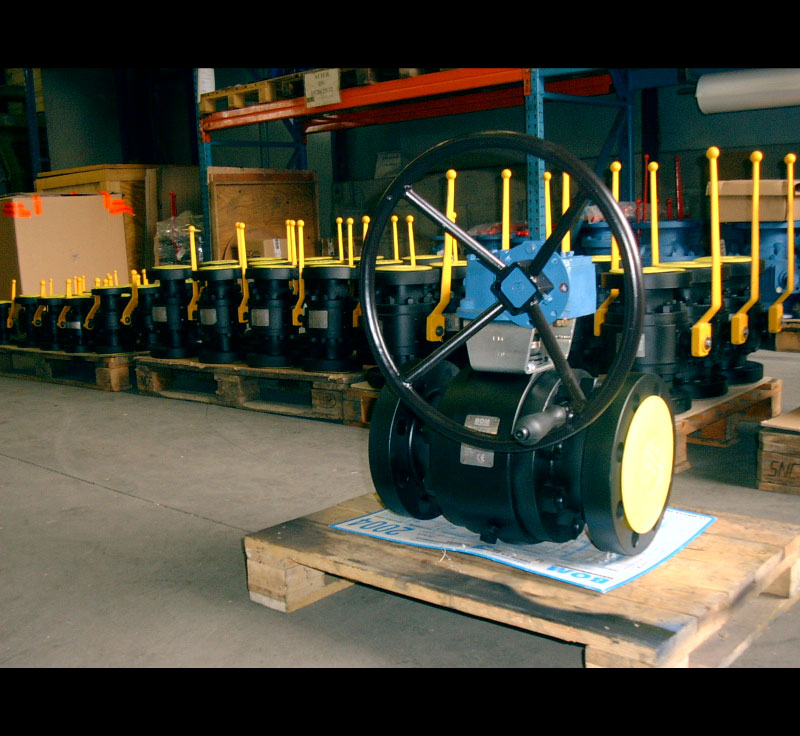

Batch of steel painted trunnion ball valves PN 100, with manually operated lever

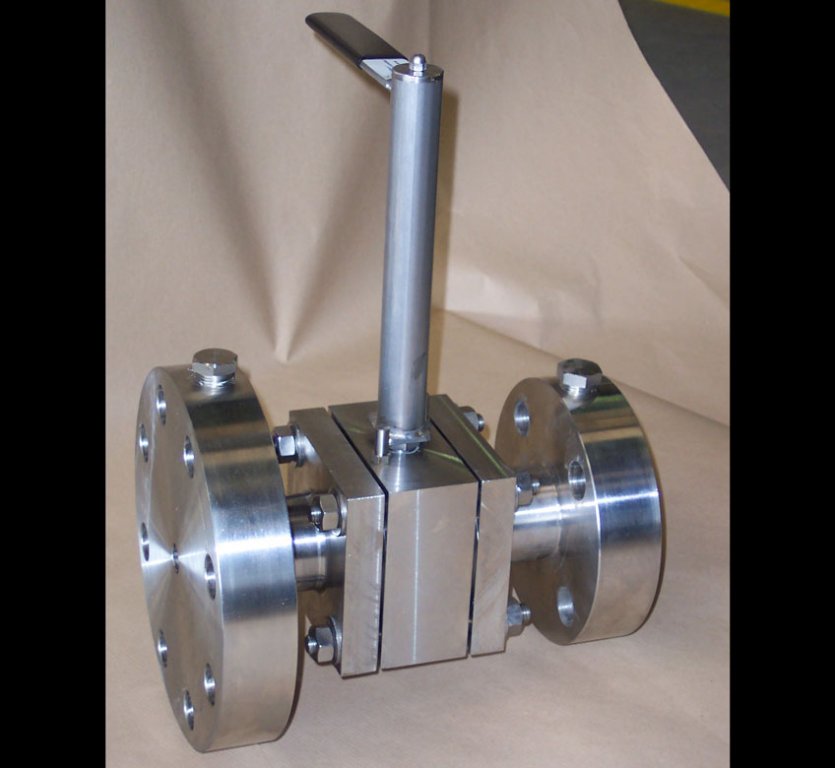

Cryogenic tank bottom ball valve DN 15 PN 16 in stainless steel 316L, pneumatic actuator and limit switch box

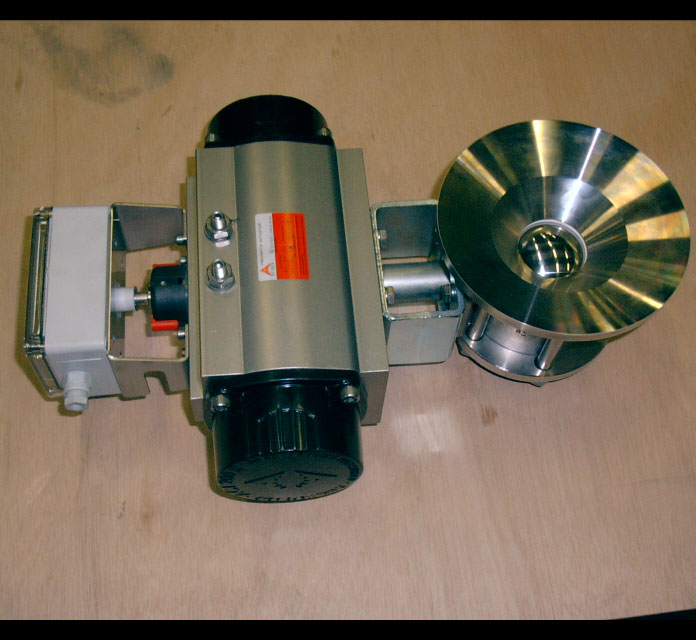

Tank bottom ball valve DN 40 PN 16 in Uranus B6, with pneumatic actuator and limit switch junction box
Ball valve DN 25 PN 150, with heating jacket

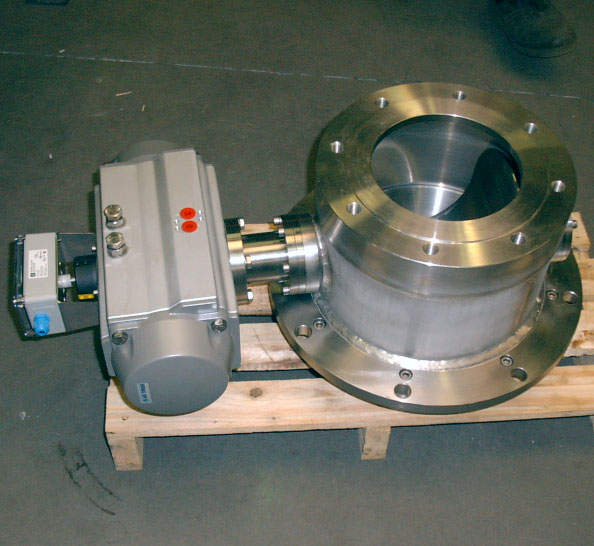

Ball valve DN 200 PN 10 in stainless steel 316L, with pneumatic actuator and crust breaking ball

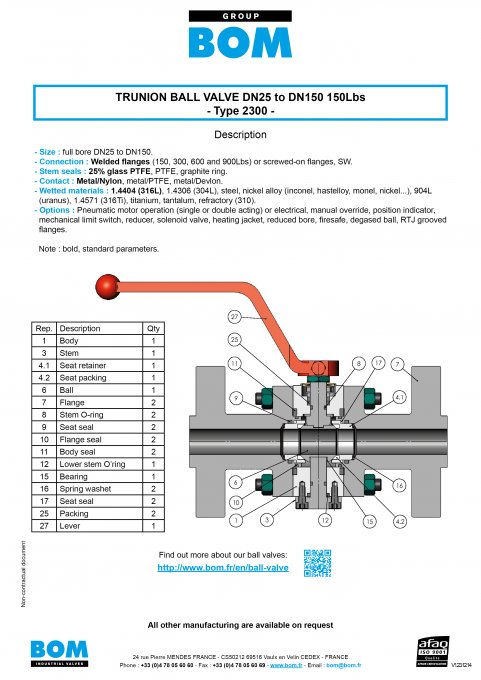

Download the specification sheet
http://bom.fr/sites/default/files/trunion_ball_valve_1.pdf
